New Facade Board
New Facade Board
New Facade Board
New Facade Board

Mineral Facade Board

A great deal of architects uses the facade to demonstrate their creative ideas. Aesthetic size of the building might be the first thing that comes to mind when mentioning facade design, but economical and functional measurements are also very important. According to the researches, at least 45% of the heat loss occurs on facades. Izocam New Facade Board is preventing those heat losses and gains on facades with it’s high thermal insulation properties which are designed for facades.

Izocam, correct solution for each need.

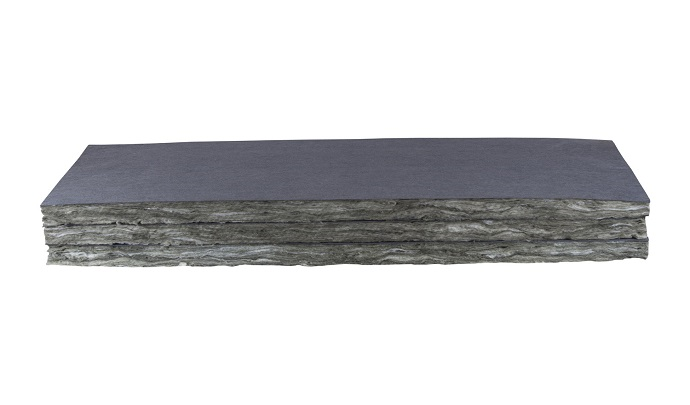

Izocam, the pioneer of reliable and qualified insulation, is providing correct solutions for each need. New Izocam Facade Board that was developed for more comfort and sustainability has water repellent feature and is faced with black glass tissue on one surface is utilized for thermal, sound insulation and fire safety under the glass, granite, marble, aluminum, wood etc. ventilated facades. Quick and easy application thanks to it’s light and flexible structure, providing saving in logistics and storage with it’s well compressibility; new facade board aims to provide qualified energy saving.

The gap between cladding material and structural system in ventilated facades will act as a chimney in case of fire. For this reason, the insulation material should be fire proof for fire safety purposes. Izocam Facade Board can be safely used even high-rise buildings thanks to its Class A1 Non-combustible properties.

Download Product Brochure
Find Closest Dealer

Application Area

  • There are countless options in metal structure and their fixation in ventilated facade applications. Architectural preferences, shape of the building, type and weight of the cladding material and dete
  • Metal brackets are anchored to exterior wall with applying of grade control both horizontally and vertically. Numerous factors such as modularity of coating material in array of anchorages, wind moves
  • It is recommended to use starting profile to secure the structure at the starting line. The first row of insulation boards is to be inserted inside the starting profile. The boards must be carefully p
  • In order to fix the insulation boards firmly, anchors are selected in suitable length to ensure they will pass through the thickness of the board and penetrate at least 4-5 cm into the masonry. Number
  • Vertical profiles that in proper length and size are mounted to brackets with steel screws.
  • Cladding modules (tile, stone, ceramic, wood, metal, glass etc.) are either fixed with special anchor items to sub-structure or fixed directly on vertical profiles.

Certificates

Material Safety Forms

İZOCAM_GW_MSDS_EN
İZOCAM_GW_MSDS_EN

Technical Specifications

Properties Symbol Unit Description Tolerance Standard
Material - - Mineral Wool - TS EN 13162
Width b mm 600 +/-1,5% TS EN 822
Length l mm 1200 +/-2% TS EN 822
Thickness d mm 40 50 60 80 100 120 T3 ** TS EN 823
Facing - - Black Glass Tissue - -
Reaction to Fire - - A1 - TS EN 13501-1
Squareness Sb mm/m max. 5 - TS EN 824
Flatness Smax mm max. 6 - TS EN 825
Dimensional Stability Δεd % max. 1 - TS EN 1604
Thermal Conductivity ʎD W/m.K 0.035 - TS EN 12667/12939
Thermal Resistance RD m2.K/W 1.10 1.40 1.70 2.25 2.85 3.40 - TS EN 13162
Short Term Water Absorption by Partial Immersion Wp kg/m2

≤1

 - TS EN 1609
Long Term Water Absorption by Partial Immersion wlp kg/m2 ≤ 3 - EN 12087
Specific Heat * c kJ/(kg.K) 0.84 - EN 12524
Water Vapor Diffusion Resistance* µ - 1 - TS EN 12086
Dynamic Elasticity * Edyn kN/m2 0.8 - DIN 52214
Packaging Material - - PE Film - -
Application Area It is used at ventilated facades, under the glass, granite, marble and aluminium wall cladding for thermal insulation, sound insulation and fire safety purposes.
Remarks The products are water- repellent and contain silicon.

* Literature Value

** T3: -3% or -3mm ; +10% or 10mm.

The biggest value is choosed at minus tolerance, The smallest value is choosed at + tolerance
