Manto Stone Wool R+

It is an unfaced stone wool boards that is produced specially with respect to TS EN 13500 standards. It is utilized at external thermal insulation composite systems for thermal insulation, sound insulation and fire safety purposes.

Download Product Brochure

Find Closest Dealer

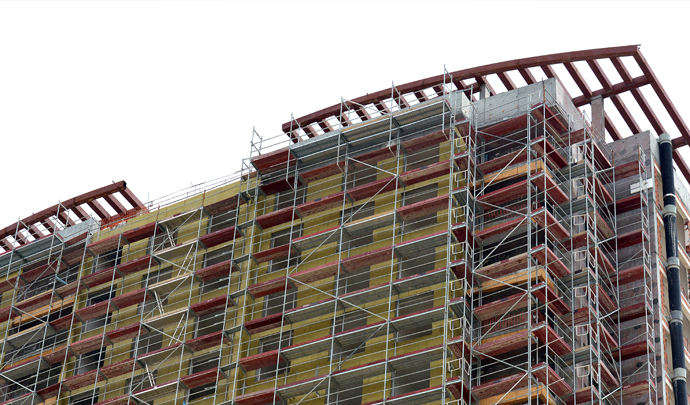

Application Area

First of all, the surface to be used in the application should be checked to ensure that it is smooth and dry.
If the surface is rough and with scrapes it should be cleaned by brushing.
Unevenness, major defects and cracks should be repaired by means of plaster.
The boards can be adhered to the surface using cement based fixing mortar by different methods.
The boards should be laid down without any gap side by side on the wall surface shortly after spreading fixing mortar over the boards.
The adhesive should not be spread near the edges of the board in order to prevent the adhesive getting into the joints.
The boards are laid down in an alternating pattern at the facades and the corners.
When the fixing mortar is completely dry (approximately after 24 hours) the anchoring process can be started. Special insulation fastening anchors are used which are chosen with respect to the wall pr
Tiled surfaces or surfaces with old plaster are not suitable for anchoring.
After anchoring process, reinforced layer is formed.
Cement based undercoat plaster is applied to the surface by trowel.
Afterwards, an alkali resistant, glass fiber based reinforcement mesh is placed on top by trowel in such a manner that the edges are overlapped by 10 cm.
Consequently, second coat plaster is applied on the mesh and the reinforced layer comes to an end. When the reinforced layer is completely dry; permeable, solvent-free decorative cladding material wit
Exterior cladding thickness and the quantity to be applied depend on the plaster type. Different surface forms can be achieved on the finishing plaster by different polishing methods.
This application is correct in terms of that it removes thermal bridges by insulating wall surfaces as well as it protects the building from atmospheric conditions and prevents physical changes which

Certificates

Material Safety Forms

İZOCAM_SW_MSDS_EN

Technical Specifications

Properties	Symbol	Unit	Description									Tolerance	Standard
Material	-	-	Stone Wool									-	TS EN 13162
Material Type	-	-	Manto Stone Wool R+									-	-
Density	ρ	kg/m³	120									+/-5	-
Width	w	mm	600									+/-1,5%	TS EN 822
Length	l	-	1200									+/-2%	TS EN 822
Thickness	t	mm	30	40	50		60		80	100	120	T5 *	TS EN 823
Facing	-	-	Unfaced									-	-
Reaction to fire	-	-	A1									-	TS EN 13501-1
Squareness	Sb	mm/m	max.5									-	TS EN 824
Flatness	S_max	mm	max.6									-	TS EN 825
Dimensional Stability	Δ_εd	%	max.1									-	TS EN 1604
Declared Thermal Conductivity (10°C)	ʎ_D	W/mK	0.037									-	TS EN 12667/12939
Thermal Resistance	R_D	m²K/W	0,80	1.05	1.35	1.60		2.15		2.70	3.20
Water Vapor Diffusion Resistance Coefficient **	µ	-	1									-	TS EN 12086
Pulling Strength	σ_mt	kPa	min. 7,5									-	TS EN 1607
Compressive Strength	σ₁₀	kPa	min. 10	min. 20									TS EN 826
Long Term Water Absorption	W_lp	kg/m²	max. 3									-	TS EN 12087
Short Term Water Absorption	W_p	kg/m²	max. 1									-	TS EN 1609
Packaging Material	-	-	PE Film									-	-
Other Information	Manto Stone Wool R+ insulation boards are manufactured regarding to the technical specifications of insulation boards stated in TS EN 13500 for “Mineral wool (stone wool) based external thermal insulation composite systems” and in compliance with TS 901-1 EN 13162 standard.

* T5: -1% or -1 mm; +3 mm. The biggest value is chosen at minus tolerance, the smallest value is chosen at plus tolerance.

** Literature value.
