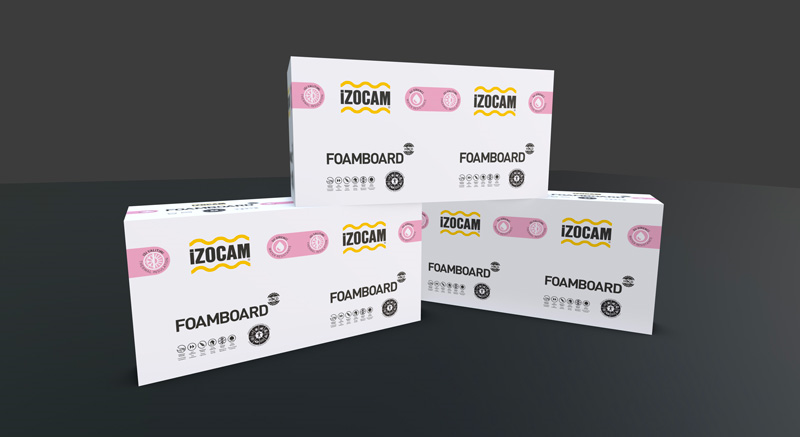

Foamboard 1500 P

Foamboard thermal insulation board is extruded polystyrene board with rough surface. It is used for the internal insulation of the exterior walls owing to its high insulation property and vapour diffusion resistance.

Download Product Brochure

Find Closest Dealer

Application Area

There are two different methods used for the internel insulation of exterior walls:
For plaster method, the boards are adhered by cement based fixing mortar to the inner wall surface in a manner that the joints are aligned.
Plaster method and dry plaster method.
The application is completed by adhering waste strip to the joint.

Certificates

Material Safety Forms

İZOCAM_XPS_FOAMBOARD EKSTRUDE POLISTREN_MSDS_EN

Technical Specifications

Properties		Symbol	Unit	Description									Tolerance	Standard
Material		-	-	Extruded Polystyrene									-	TS EN 13164
Edge Profile		-	-	Square, Ship-lap									-	-
Surface Shape		-	-	Rough									-	-
Material Type		-	-	1500 P		2000 P		2500 P		3000 P		3500 P	-	-
Compressive Strength (10% deformation)		σ₁₀	kPa	min 150		min 200		min 250		min 300		min 350	CS(10/Y) 150 200 - 250 - 300	TS EN 826
Density		ρ	kg/m³	min. 20-21		min. 24-30		min. 26-30		min. 27-30		min. 28-32	-	-
Tensile Strength Perpendicular to Faces		TR	kPa	min 200		min 200		min 400		min 400		min 600	TR200 - TR400 TR 600	TS EN 1607
Water Vapor Diffusion Resistance Coefficient		MU	-	80		80		100		100		100	MU80 - MU100	TS EN 12086
Width		w	mm	600									± 8 mm	TS EN 822
Length		l	mm	1200									± 8 mm	TS EN 822
Squareness		S_b	mm/m	max 5									-	TS EN 824
Flatness		S_max	mm/m	max 6									-	TS EN 825
Thickness	1500 P	t	mm	25	30	40	50	-	-	-	-	-	T1 *	TS EN 823
	2000 P			-	-	40	50	60	70	80	90	-
	2500 P			-	-	40	50	60	70	80	90	-
	3000 P			-	-	40	50	60	70	80	90	-
	3500 P			-	-	40	50	60	70	80	90	120
Reaction to fire		-	-	E									-	TS EN 13501-1
Thermal Resistance		R_D	m².K/W	0.70	0.85	1.10	1.40	1.70	2.00	2.25	2.55	3.40	TS EN 13164
Declared Thermal Conductivity (10 °C)		λ_D	W/m.K	0.035									-	TS EN 13164
Freeze Thaw Resistance		FTCD	%	max 2									FTCD2	TS EN 12091
Dimensional Stability under Specified Temperature and Humidity Conditions		Δεl, Δεb, Δεd	%	max 5 **									DS (70,90)	TS EN 1604
Dimensional Stability Under Specified Thermal and Compressive Load conditions		ε_t	%	max 5 ***									DLT(1)5 DLT(2)5	TS EN 1605
Long Term Water Absorption with Total Immersion		W_lt	%	max 0,7									WL(T)0,7	TS EN 12087
Long Term Water Absorption with Diffusion		W_dV	%	max 5									WD(V)5	TS EN 12088
Packaging Material		-	-	PE Film									-	-
Other Information		Densities change according to thickness for detailed information contact with Izocam.

* T1 : +2 for < 50 mm; -2,+3 for 50 - 120 mm; -2,+3 for > 120 mm. According to customer demands can be produced in T2 or T3 thickness class.

** TS EN 13164 / Item 4.3.2

*** TS EN 13164 / Item 4.3.3
