Facade Board

Izocam Facade Board is a stone wool board either unfaced or with only one side faced with aluminium foil or black glass tissue. It is utilized at curtain wall systems, under the glass, granite, marble and aluminium wall cladding for thermal insulation, sound insulation and fire safety purposes.

Download Product Brochure

Find Closest Dealer

Application Area

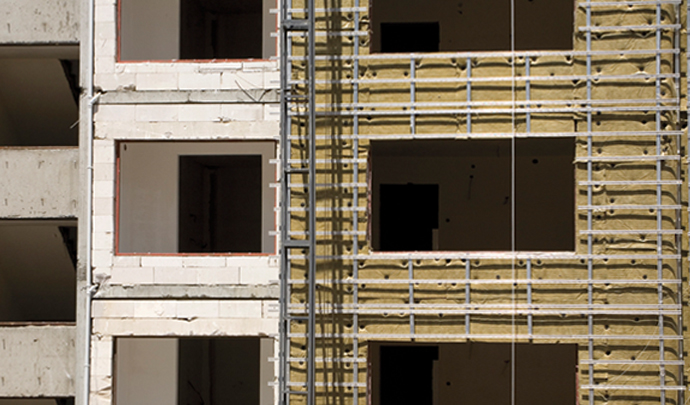

The boards can be placed in between the structural profiles fastened to the concrete surface by anchor members or they can also be installed to the facade wall by means of anchors.
For prefabricated panel as well, the boards are placed in to the panels at the plant and then they are installed to the concrete surfaces as ready-to-use elements at the construction site.

Certificates

Material Safety Forms

İZOCAM_SW_MSDS_EN

Technical Specifications

Properties	Symbol	Unit	Description							Tolerance	Standard
Material	-	-	Stone Wool							-	TS EN 13162
Density	ρ	kg/m³	52 - 90							+/-10%	-
Width	w	mm	600							+/-1,5%	TS EN 822
Length	l	mm	1200							+/-2%	TS EN 822
Thickness	t	mm	30	40	50	60	80	100	120	T4 *	TS EN 823
Facing	-	-	Unfaced							-	-
Reaction to fire	-	-	A1							-	TS EN 13501-1
Squareness	S_b	mm/m	max.5							-	TS EN 824
Flatness	S_max	mm	max.6							-	TS EN 825
Dimensional Stability	Δ_εd	%	max.1							-	TS EN 1604
Declared Thermal Conductivity (10 °C)	ʎ_D	mW/mK	0.035							-	TS EN 12667/12939
Thermal Resistance	R_D	m².K/W	0.85	1.10	1.40	1.70	2.25	2.85	3.40	-	TS EN 13162
Water Vapor Diffusion Resistance Coefficient **	µ	-	1							-	TS EN 12086
Short Term Water Absorption	W_p	kg/m2	max. 1							-	TS EN 1609
Long Term Water Absorption	W_lp	kg/m2	max.3							-	TS EN 12087
Packaging Material	-	-	PE Film							-	-
Other Information	Boards can be coated with yellow/black glass tissue and aluminium foil. Maximum service temperature on the side faced with glass tissue is 200 °C and on the side faced with aluminium foil is 90°C.

* T4: -3% or -3 mm; +5% or +5 mm. The biggest value is chosen at minus tolerance, the smallest value is chosen at plus tolerance.

** Literature value.
